SURROUND OVERHEAD SEND CABLE (mono)

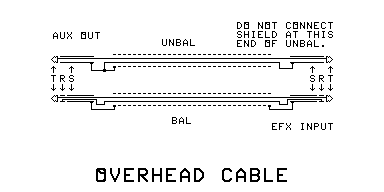

Schematic Diagram CONSTRUCTING PATCH CORD C

  1. Buy a standard patch cord to use here.
  2. Label the mixer end OVERHEAD AUX SEND.
  3. Label the other end DELAY IN

Alternatively, make one of the special cables pictured for less noise.
