SURROUND OVERHEAD CABLE (mono)

CONSTRUCTING PATCH CORD B

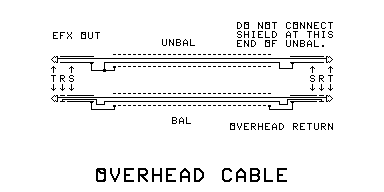

  1. Schematic Diagram Buy a standard patch cord that will connect from the OUTPUT of the delay unit to the OVERHEAD RETURN input.
  2. Label the plug that fits the mixer OVERHEAD RETURN.
  3. Label the plug that fits the delay unit DELAY OUT

Alternately, make one of the cables at right for lower noise.

Click BACK to return to the instructions.
