SURROUND CROSSFADER

You will need the following:

• One 10 K ohm linear taper potentiometer
• Four 2.2 K ohm resistors
• Two 4.7 K ohm resistors
• One 600 ohm resistor
• 1 small plastic box to mount the parts in.
• Three 1/4" TRS phone jacks.
• Either a ready-made grid PC board or some solder-lug terminal strips to mount parts on.
• Wire

Assembly Instructions:

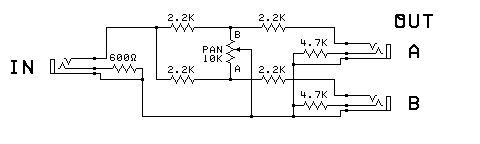

1. Wire the circuit as shown.
2. Note that turning the pot to the A position silences B, and turning it to the B position silences A.
3. The resistors connected to the ring contacts of the jacks provide impedance balancing.
4. Finish assembling the box.
